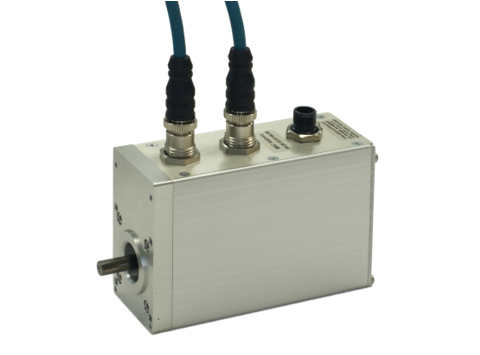

The ReadyLink™ LDT is a smart device; it has a RapidRecall™ Configuration Module to aid in configuration of the LDT
- Supports: Star, Line & DLR (Device Level Ring) topology
- IP address selection flexibility – both local & software setting capability
- 5 status LEDs to monitor LDT and Network status
- Status Bits: Position & Velocity out of programmable limits range
- Wide input power operating range (7 – 30VDC)

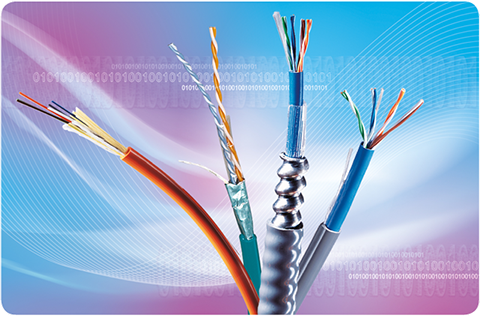

DataTuff® industrial Ethernet cable and cord sets provide maximum network performance for mission critical applications.
- EtherNet/IP compliant in Cat 6 or 5e designs
- Industrial grade for harsh environments
- Complete range of high-quality, high-reliability industrial ethernet cables
Bonded-pair technology assures consistant high performance data transmission
- Installation stress resistant
- Improved noise immunity
- Reliable Performance

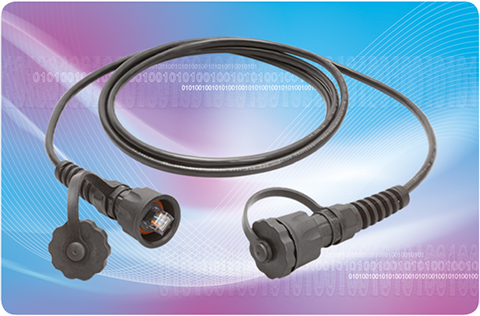

Belden DataTuff cord sets and connectivity
- Sealed IP67 rated cord sets and connectors resistant to dust and water ingress
- IP20 rated cordsets and connectors for protected environments
- Ruggedized metal body plugs for field installation
Belden Industrial Grade TrayOptic® Fiber
- Easily installed in tray with other cables
- No inner duct required!
- Ruggedized for greater crush, impact and abrasion resistance
- Waterblocked for moisture protection
- Dual rated both indoor and outdoor

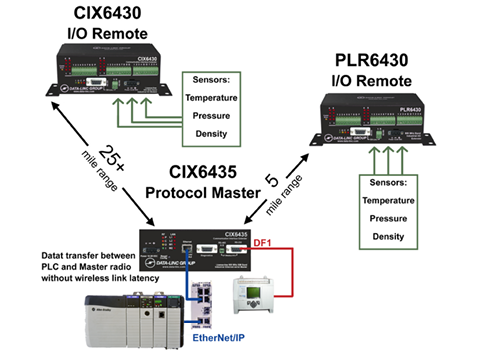

CIX/PLR hybrid architecture provides a cost-effective, unique wireless solution accommodating long-range and/or lower-range, license-free Protocol to I/O Remote communication.
- PLC to Master radio data transfer without wireless link latency
- Unparalleled wireless protocol to I/O solution
- Wireless Protocol Master CIX6435 supports 16 I/O Remotes (384 points)
- Master CIX6435 interfaces with EtherNet/IP and other protocols
- CIX/PLR network employs robust FHSS for harsh environment, ultrareliable communication
PlantLinc/CIX Wireless Protocol to I/O Hybrid Range Solution. DATA-LINC’s unparalleled, unique Protocol to I/O solution supports data transfer between PLC and Master radio without wireless link latency.
- No complicated programming
- No extra equipment or converters required
- Long-range CIX compatible with lower-cost, lower-range PLR offers cost-sensitive design
- Master CIX6435 interfaces with EtherNet/IP and other protocols
- Robust FHSS technology

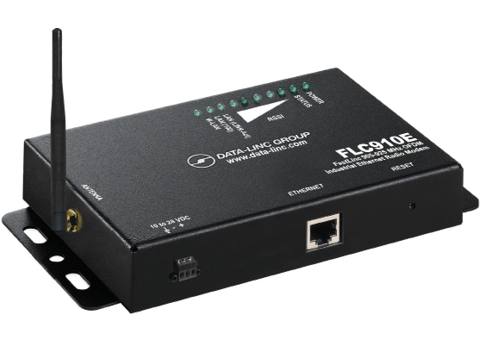

FastLinc 900MHz High-Speed Modem. FastLinc Family’s 900MHz high-speed wireless Ethernet OFDM modem, ideal for long-range installations requiring high data rates in noisy RF environments.
- Supports speed up to 54Mbps in the 900MHz band
- 10 miles line-of-sight and high-gain antennas, farther with repeaters
- Employs fast OFDM industrial technology
- Not subject to IT management
- VLAN, QoS

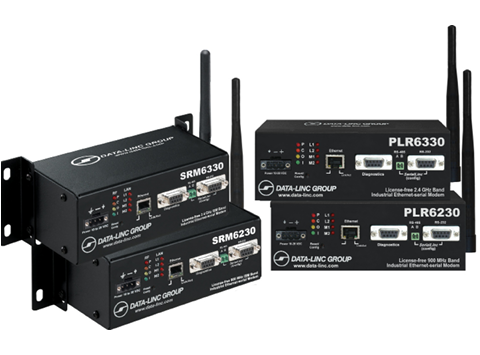

PlantLinc/SRM Wireless Ethernet/IP Hybrid Range Modems. Flexible PLR/SRM hybrid architecture provides a cost-effective wireless solution accommodating long-range and/or lowerrange, license-free wireless Ethernet communication.
- Competitively priced FHSS ultra-reliable wireless modems
- License-free, robust FHSS SRM technology for short to medium ranges
- Compatible with long-range SRM modems
- Adjustable hop-patterns and frequency zones for exceptional side-by-side network performance
- Wireless Ethernet, serial and Protocol to I/O options
Unlock your process potential with the world's first instruments for the EtherNet/IP™ network designed and built by Endress+Hauser.
- Seamless integration into Integrated Architecture™ and PlantPAx™ Process Automation System
- Integrate, configure and commission in minutes, not hours like with other networks
- Measurement information from the instruments into the control system
- Expand the flow of real-time data across the manufacturing enterprise
- Aids real-time decision making for increased quality and output

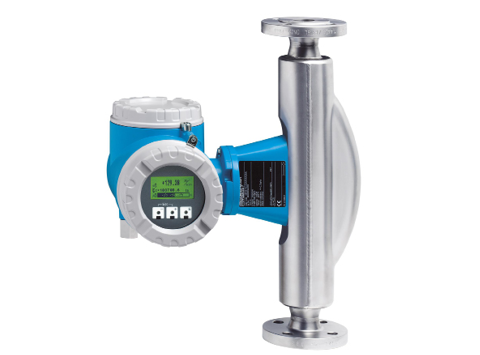

Proline Promass Coriolis Meter – the flowmeter with premium accuracy, robustness and extended transmitter functionality.
- Multivariable measurement of mass, volume, corrected volume flow, density, reference density, temperature or viscosity
- Extremely accurate measurement of liquids and gases
- Fluid temperatures up to 392°F (+200°C)
- Process pressures up to 1440 psi (100 bar)
- Mass flow measurement up to 80 850 lb/min (2200 t/h)

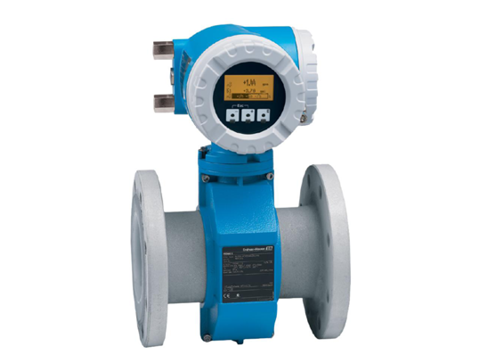

Proline Promag Electromagnetic Meter – the flowmeter with the highest accuracy in the most complex and demanding measuring tasks.
- Secure, reliable long-term operation – robust and completely welded sensor
- Energy-saving flow measurement – no pressure loss due to cross-section constriction
- Maintenance-free – no moving parts
- Easy calculation – bidirectional totalizers
- Automatic recovery of data for servicing

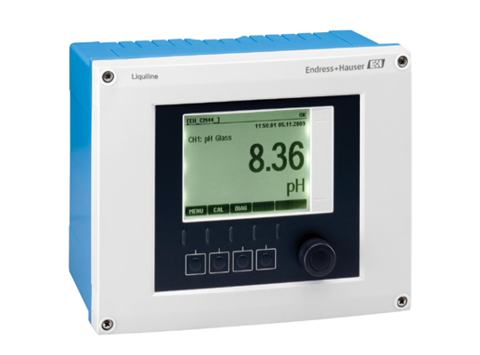

Liquiline CM44 is a digital multiparameter transmitter (up to 8 channels) for process monitoring and controlling in any application.
- Simple to commission: Open communication standards simplify the integration into your process
- Simple to use: One device for all parameters. Say goodbye to operating errors
- Simple to adapt: Upgrade the controller anytime and stay flexible
- Simple to maintain: Memosens™ technology with advanced diagnostics increases process up-time
ESTeem 195E, designed for the rigors of the Industrial markets, provides wireless networking for your SCADA, control and mobile needs.
- Scalable, Self-Healing Mesh Networks
- High Security 128-bit AES Encryption
- Waterproof NEMA 4 case for direct outdoor mounting
- Complete Turnkey wireless solutions, RF Design & Engineering Services available
- Available in 900 MHz, 2.4 GHz, 4.9 GHz and 5.8GHz

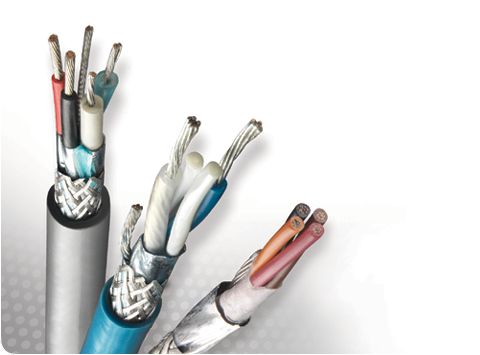

Meeting the needs of harsh conditions on the plant floor by offering sustainable solutions in Category 5e and 6 cables. Industrial Ethernet cable is the perfect cable for an imperfect environment.
- TRU-Mark® Print Legend with footage markings
- Industrial-Grade Oil and Sunlight-Resistant Jacket
- Foil shielding reduces electromagnetic interference (EMI)
- Additional Braid Shield for added low frequency EMI protection
- Third Party Verified for guanranteed performance
Be certain that cabling will not cause you downtime with these industry standard cables. No matter if it’s an old design or brand new, our industry standard cables have you covered.
- TRU-Mark® Print Legend with footage markings
- Foil shielding reduces electromagnetic interference (EMI)
- High Flex Cables, Plenum and Armored versions availaible
- Continuously Corrugated Welded Armor (CCW®) Available
- Low Smoke Zero Halogen jackets available
General Cable "The Art of Making Wire and Cable."
- Top Resource to Industry Leaders
- Presence in over 90 Countries
- Powering our Partners Success
- Brand Recongnition
Netbiter EC300 gateways automatically connect industrial field equipment to the cloud allowing for remote access and remote management.
- Connects to I/O, serial or Ethernet-based field equipment
- Remote connectivity over Ethernet, GSM, GRPS or 3G networks
- Firewall friendly, no fixed Ips or specific SIM cards required
- Instant connectivity to your remote equipment
- Supports remote access – remote programming of a PLC or machine

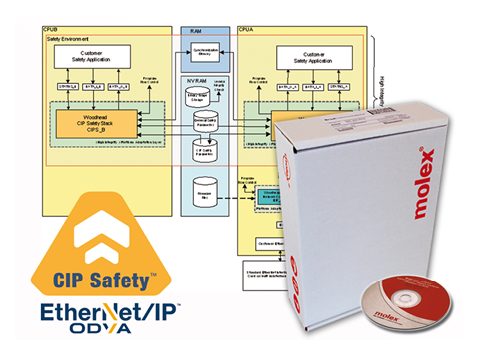

The IXXAT CIP Safety Software can be used for implementing CIP Safety Target devices (scanners) on EtherNet/IP.
- Support of multiple CIP Safety instances
- Interfaces enable porting to different hardware and software platforms
- Operating system independent
- Designed according to IEC 61508 for applications up to SIL-3

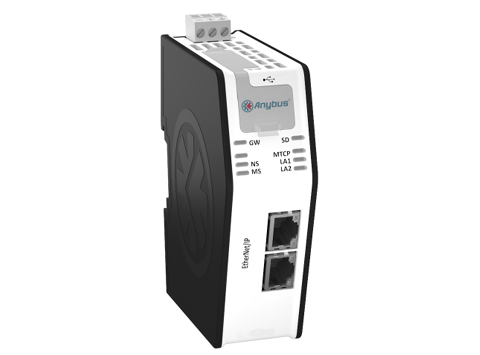

Anybus X-gateway Modbus-TCP for EtherNet/IP provides user with one of the most comprehensive solutions for solving EtherNet/IP to Modbus-TCP connectivity.
- Up to 64 server connections and transactions
- Individual Modbus-TCP server port number setting
- 2 port switch on Modbus-TCP and EtherNet/IP sides, allows "daisy chaining" on both sides
- EtherNet/IP Device Level Ring (DLR) and linear network topology supported
- Slim housing
Anybus NP40 is a network processor for all major industrial networks. Suitable for applications with fast network cycles and synchronization demands.
- Offers high performance, flexibility and low power consumption
- Enables "zero delay" between the host device and the network
- Optimized stacks and controllers
- Internal API separation
- Low-level pre-processing
CattronControl™ MMCU4, remote control/telecommand Machine Control Unit for industrial cranes and machines, enhancing operator safety and productivity.
- Many I/O options to interface into most control applications
- Many Bus formats: including EtherNet/IP
- IP65 steel housing (for outdoor use), with global radio frequencies
- Safety critical design: EN 13849-1 Category 3 PL d; EN 60204-1; EN 60204-32
- Pairs with any of the CattronControl™ Operator Control Units

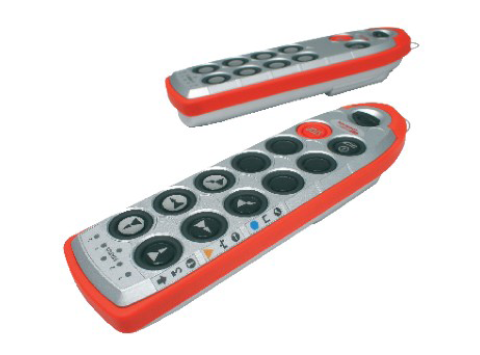

CattronControl™ Excalibur, hand-held pushbutton, wireless remote control for safety critical machine control free from hardwired interfaces.
- High-impact, IP65, polymer and rubber remote for industrial environments.
- Mimics local control: start/stop, speed, crane lifts, E-stop, etc.
- Six to twelve dual-step buttons: used independently or interlocked
- Long battery life plus buzzer & LED alerts for low battery
- Safety critical design: EN 13849-1 Category 3 PL d; EN 60204-1; EN 60204-32

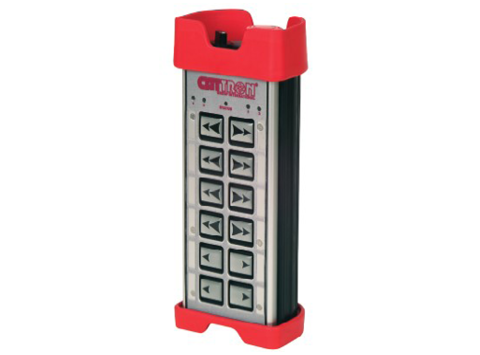

CattronControl™ MKU hand-held pushbutton, wireless remote control for safety critical machine control free from hardwired interfaces.
- IP65 aluminum and rubber remote safely and efficiently positions operator.
- Mimics local control: start/stop, speed, crane lifts, E-stop, etc.
- Twelve dual step buttons: independent or interlocked (reversing functions, on/off)
- Long battery life plus buzzer & LED alerts for low battery
- Safety critical design: EN 13849-1 Category 3 PL d; EN 60204-1; EN 60204-32

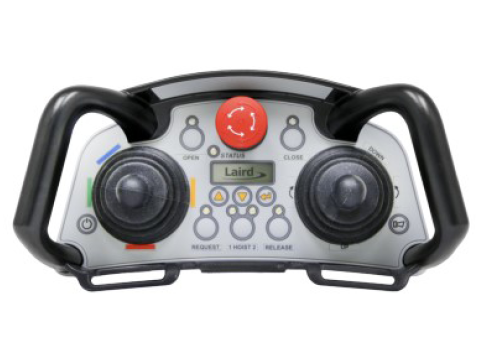

CattronControl™ LRC-S1 "Belly Box style" wireless remote control with fall detection, for safety critical machine applications free from hardwired interfaces.
- Two joysticks (4 motions) with momentary & maintained switch functions
- Optional graphical LCD provides enhanced operator feedback and status indication
- Lightweight IP65 polycarbonate remote, safely and efficiently positions operator
- Functions: Seven digital, four analog, plus E-STOP
- Safety critical design: EN 13849-1 Category 3 PL d; EN 60204-1; EN 60204-32

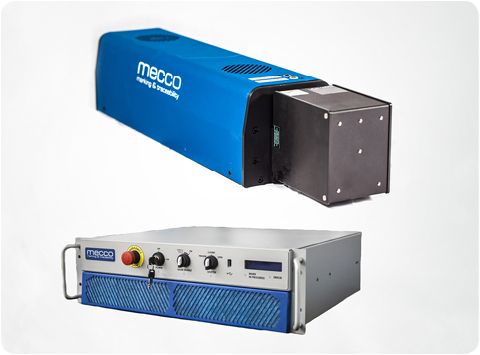

Leverage the power of EtherNet/IP to control our Next Generation MeccoMark® Fiber Laser Marker.
- EDS Based Add On Profile
- Add On Instructions for all major functions
- Load Job, Send custom strings, and apply XY offsets
- Serial Number Duplication Prevention & Mark Verification
- Easy to use, includes Demonstration ACD File
Leverage the power of EtherNet/IP to control our Next Generation MeccoMark® CO2 Laser Marker.
- EDS Based Add On Profile
- Add On Instructions for all major functions
- Load Job, Send custom strings, and apply XY offsets
- Serial Number Duplication Prevention & Mark Verification
- Easy to use, includes Demonstration ACD File

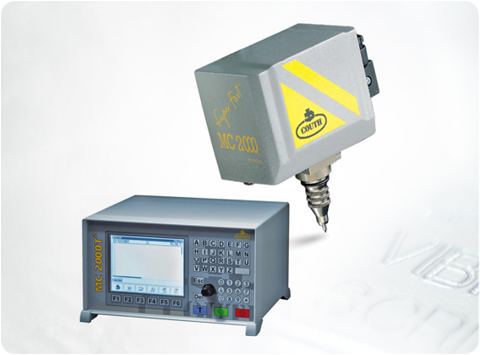

Leverage the power of EtherNet/IP to control our MC2000 Dot Peen Marker.
- EDS Based Add On Profile
- Add On Instructions for all major functions
- Load Job, Send custom strings, and apply XY offsets
- Serial Number Duplication Prevention & Mark Verification
- Easy to use, includes Demonstration ACD File
EtherNet/IP development kit. Allows implementation of Scanner and/or Adapter into various platforms, reducing risk and time-to-market.
- According to the latest EtherNet/IP specification and conformance tool
- C source code, and implementation samples provided
- Implicit and explicit messaging supported
- Scanner configuration tool provided with EDS file support
- Multiple, optional add-ons (DLR, Energy objects, configuration management layer)
CIP Safety adapter development kit. The stack is TUV approved, according to IEC 61508 ed. 2 standard, up to SIL3 applications.
- According to the latest CIP Safety specification
- C source code
- I/O profile as an add-on
- Certification evidence provided, to minimize risk and improve time to market
- Support both DeviceNet and EtherNet/IP black channel
The Wireless HART Gateway is the core element of a wireless network, acting as the key interface between field-devices and DCS.
- Connects up to 250 devices
- Direct access via web browser
- Zone 2 / Div. 2 mountable
- AOP (Add On Profile) for easy integration in Rockwell Automation Control Systems
- EtherNet/IP protocol via Ethernet interface

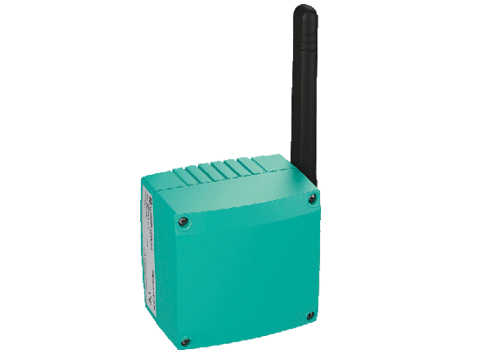

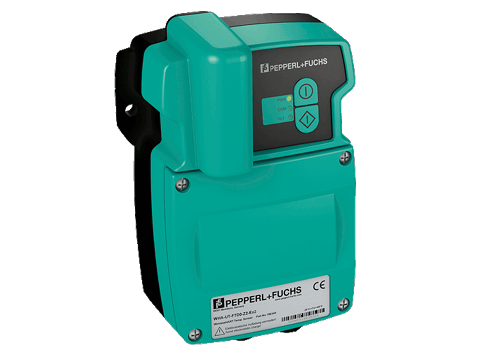

The Wireless HART Adapter operates as a router, converting conventional HART or 4 … 20 mA signals into wireless transmission.
- Connects any 4 … 20 mA device via cable gland
- Battery powered
- Can power itself and the device for true wireless operation
- Models rated for General Purpose or Zone 1 / Div. 1 areas
The Wireless HART Temperature Converter offers two RTD or TC inputs to transfer direct measurement readings to the network.
- 2 channels
- Supports RTD or thermocouple inputs
- Battery operated
- Rated for Zone 1 installations
Wirless HART product allow the installation of measuring devices without incurring the effort and costs for cable and associated hardware.
Whether it's process alarming, safety messages, inventory data or just congratulating the team, InView delivers the right information at the right time to the right place.
- Preferred compatibility to Rockwell Automation controllers and networks, including EtherNet/IP, ControlNet and DeviceNet
- Embed data from tags in multiple PLCs using EtherNet/IP connectivity
- Fully licensed Rockwell Automation technology; TechConnect support included with purchase
- Proven display technology with red, tri-color or RGB messages visible up to 450 feet away, depending on model
- Dynamic messaging, with the use of variables, for real-time information
WebPort is a complete remote access solution that promises to deliver end-to-end connectivity, data access and event notification, all while remaining simple and easy-to-use.
- Secure remote access via EtherNet/IP or cell network using a VPN
- Simultaneous serial and EtherNet/IP device connectivity
- Data logging and reporting
- Alarm and event notification via email, SMS, or FTP
- Reduce travel and labor expenses through remote connectivity
The Ternary is a fully integrated actuator that reduces the components in the cabinet and moves them to the point of action.
- AOI
- Dual port
- Integrated actuator with controller, drive, motor, and mechanics
- Robust design available in both IP40 and IP65.
- Optional absolute encoder
Integrated linear actuator, ballscrew rod with various lengths and pitches to meet your torque and speed requirements.
- Stroke lengths up to 300mm
- Force up to 220lbs
- Acceleration rates up to 4G, and speeds up to 1m/s
- Folded configuration available for tight spaces
Rotary actuator featuring WITTENSTEIN alpha gearbox.
- Gearhead configurations for inline and right-angle
- Ratios up to 100:1
- Dial in torque and speed requirements through XX available ratios
Ternary linear actuator with rodless slide.
- Stroke length up to 700mm
- Force up to 135lbs
- Speeds up to 1m/s
